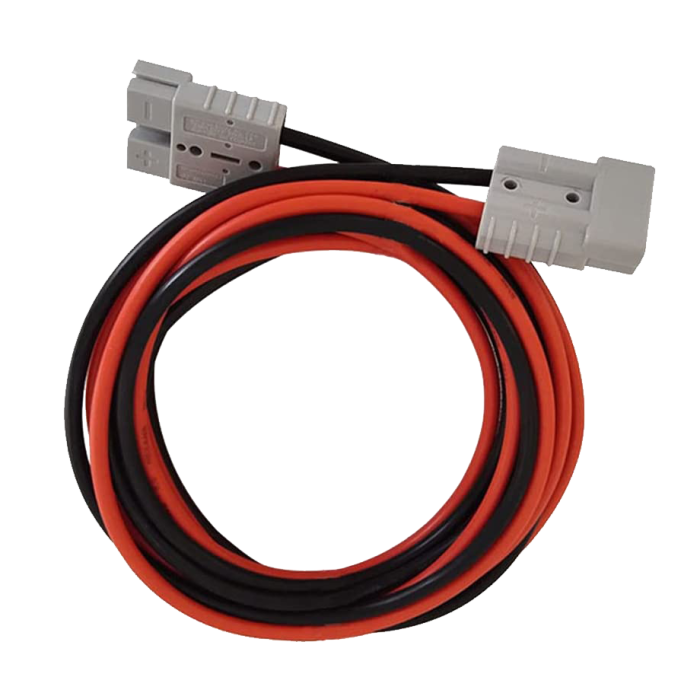

Pro Customize Anderson Connector for Forklift Plug Wire Trailer Power Storage Power
Anderson Connector to Lugs cable, UL recognized cable, UL Product iQ® AVLV2.E333113
Our Anderson plug kit provides an easy way to handle direct power connections to car batteries; truck, ATV and RV winches, lifts and cranes; and tug and outboard motors on boats, as well as household and industrial applications such as lathes , chargers and power inverters.
Specifications:
Anderson Plug: 50,120 and 175A for choise, Voltage: 12~72V, Maximum Withstand Voltage: 600V.The shell is made of Class A high impact plastic UL94V-0 material, corrosion resistant and high temperature resistant.
AWG Cable: UL recognized cable, The length of the four wires is all 0.3,1.0m and 2.0m, Rated Temperature: 200°C, Rated Voltage: 600V, with excellent wear resistance, corrosion resistance, water resistance and heat resistance.
Easy to use:The Anderson plug and wire are already connected, so you don't need to do complicated wiring. The connector ends are identical, so either end is suitable for connection to the power side or the load side.
|
Gauge AWG |
Stranding (mm) |
Insulation (mm) |
Width of Conductor (mm) |
Area of Conductor mm2 |
Rating Amps |
Resistance （Ω/KM) |
Kg/m |
|
10 |
1050/0.08TS |
1.3 |
5.5 |
6 |
50 |
6.3 |
0.0685 |
|
6 |
3200/0.08TS |
1.65 |
8.5 |
16 |
140 |
1.90 |
0.190 |
|
4 |
5000/0.08TS |
2.4 |
11 |
25 |
180 |
1.25 |
0.300 |
|
2 |
6700/0.08TS |
2.4 |
13 |
33.5 |
200 |
0.89 |
0.420 |
Application:
Our Anderson plug kit provides an easy way to handle direct power connections to car batteries; truck, ATV and RV winches, lifts and cranes; and tug and outboard motors on boats and boats, as well as household and industrial applications such as lathes , chargers and power inverters.
Customization:
if you need One-to-Two, different connector or length, please send us a quote to info to info@beautygarden.com.au
