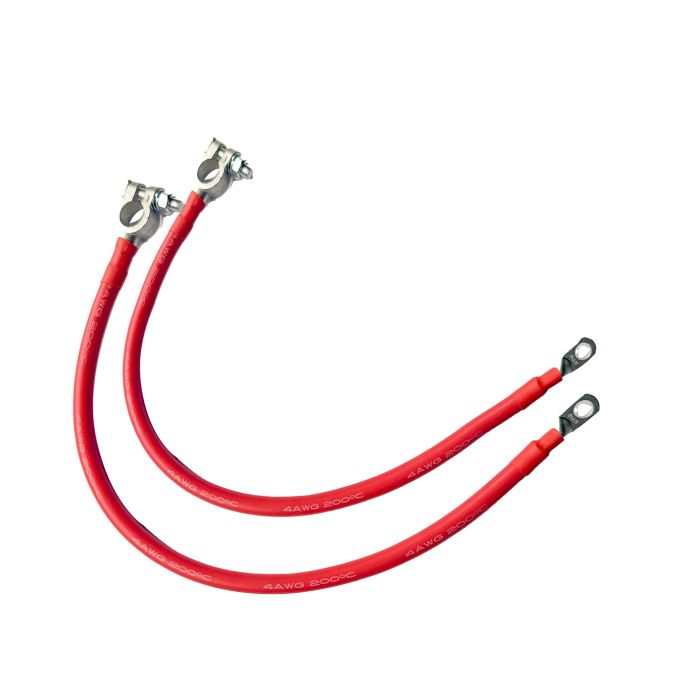

Pro Customize Battery Cable leads and 10mm lugs for Car, Boat, Marine, Inverter
Pro Customize Battery Cable leads and 10mm lugs for Car, Boat, Marine, Inverter
Our quality copper battery cables are available with pre-attached cable lugs with 3/8" diameter mounting holes. Jacket and insulation are resistant to oil, gas, salt water, battery acid, heat, abrasion, and sunlight.
Polyolefin heat shrink tubing is applied at the cable lug attachment point to form a protective seal, good for prevent corrosion and heat insulation.
Those cable excellent for battery bank wiring, inverter cables, grounding cables, RV car marine boat wiring applications, golf cart wiring etc.
Our cables are made of T2 low-resistance copper, strong joints made with special hydraulic tools and the section is tin-plated, which has a long life and extremely low resistance to reduce power consumption and also avoiding the risk of fire caused by poor connections.
Specfications:
Copper size: 4AWG
Voltage rating: 600 volts
Rating Current: 180 Amp
Operational temp. range: -60°C to +200°C
Hardness: HV:120-70
Tin-plated copper ring terminal
|
Gauge AWG |
Stranding (mm) |
Insulation (mm) |
Width of Conductor (mm) |
Area of Conductor mm2 |
Rating Amps |
Resistance Ω/KM) |
Kg/m |
|
4 |
5000/0.08TS |
2.4 |
11 |
25 |
180 |
1.25 |
0.300 |
|
2 |
6700/0.08TS |
2.4 |
13 |
33.5 |
200 |
0.89 |
0.420 |
Certification:
Standard : DIN EN 61373 class 1B vibration-tested
Maching acuuracy class: High
Pullout test?Conform to UL486 standard
Contact resistance? Conform to UL486 standard
Flammability rating of material? Conform to UL486 standard
Certification : ISO9001,SGS,CE,ROHS
